Solar Taurus 60-7301 GSC Gas Turbine Package
A fully refurbished, zero-running-hour Solar Taurus 60-7301 GSC package rated 5,200 kWe (ISO dry), 6,300V, 60Hz, dual fuel. Complete with Siemens S7-400 controls, stainless steel acoustic enclosure and an 18-month warranty. Two units are ready for delivery now, with four additional units available within two months.
5,200 kWe Output · ISO Dry Condition
6,300 V / 60 Hz Generator
Fully Refurbished · Zero Running Hours
2 Units Ready Now · 6 Total / 31.2 MW
Solar Taurus 60-7301 GSC specifications
All figures below are sourced from the seller's technical proposal and are nominal, ISO-reference values, subject to verification and technical due diligence.
- Manufacturer / Model
- Solar Turbines Taurus 60-7301 GSC
- Package Type
- Fully refurbished gas turbine generator package
- Output
- 5,200 kWe (ISO dry condition)
- Frequency
- 60 Hz
- Generator Voltage
- 6,300 V
- Generator Speed
- 1,800 RPM
- Fuel
- Dual fuel — natural gas and diesel, with redundant fuel capability
- Condition
- Fully refurbished; zero running hours
- Heat Rate
- 11,882 kJ/kWh (11,263 Btu/kWh), reference value
- Package Dimensions
- 9,754 mm (L) × 2,438 mm (W) × 2,591 mm (H)
- Approx. Package Weight
- 29,300 kg (64,590 lb)
- Warranty
- 18 months from shipment date or 12 months from commissioning
What's included in the package
Seller will supply fully refurbished generator sets comprised of the gas turbine assembly, from the air inlet filtration system to the exhaust diverter valve, with the reduction gearbox and electric generator mounted on an industrial steel frame.
Main Components
- Solar Taurus 60-7301 GSC gas turbine assembly, 5,200 kWe (ISO dry)
- Reduction gearbox, 1,800 RPM output
- AC generator, 1,800 RPM, 60 Hz, 6,300 V
- 1,000-liter steel lube oil tank with piping
- Hydraulic start system, drive adapter and clutch assembly
- Gas fuel filter system and fuel control valve
- Complete lube oil system and lube oil cooler
- Turbine instrument air system
- On-skid junction boxes, wiring, connectors and terminal blocks
Control System & Panels
- S7-400-based integrated control system covering fuel control, start-stop sequencing, generator control, temperature monitoring and shutdown protection
- Operator interface (HMI) for the complete turbine package
- Automatic synchronizing, motorized voltage adjustment, kW controller and kVAR/power-factor controller
- Siemens-equipped panels, with turbine control software rewritten by the seller's engineering team
Enclosure & Safety Systems
- Weatherproof, sound-attenuating stainless steel enclosure with ancillary roof skid
- Two-stage inlet air filtration — barrier filter and silencer
- Exhaust bellows and silencer sized to industrial site standards
- Siemens XC-10 fire monitor with CO2 suppression, UV flame and rate-of-rise thermal detectors
- Vibration monitoring system
Battery System
- 24V nickel-cadmium battery system with battery rack
- 24–26 Vdc, 100A battery charger
Enclosure, turbine train and controls

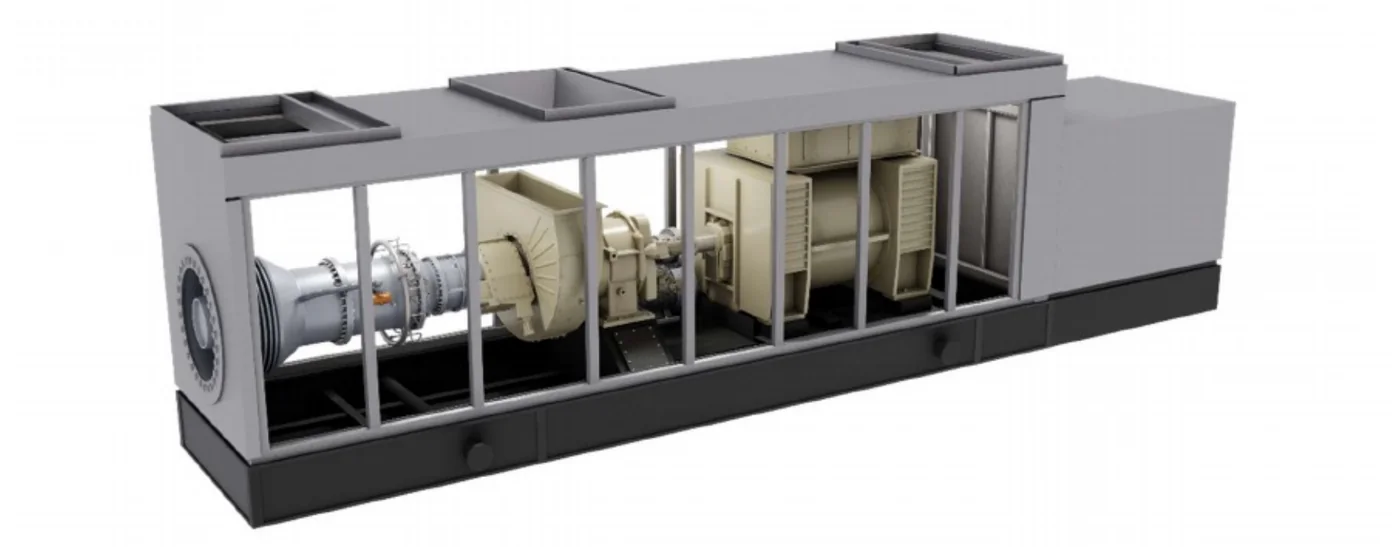

Enclosure & Skid Configuration

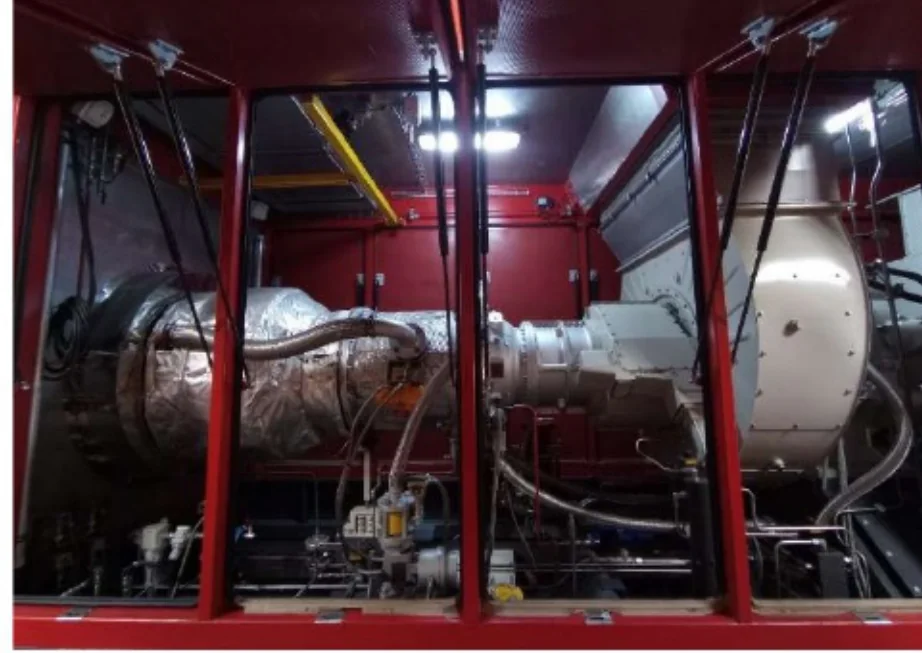

Turbine & Generator Train

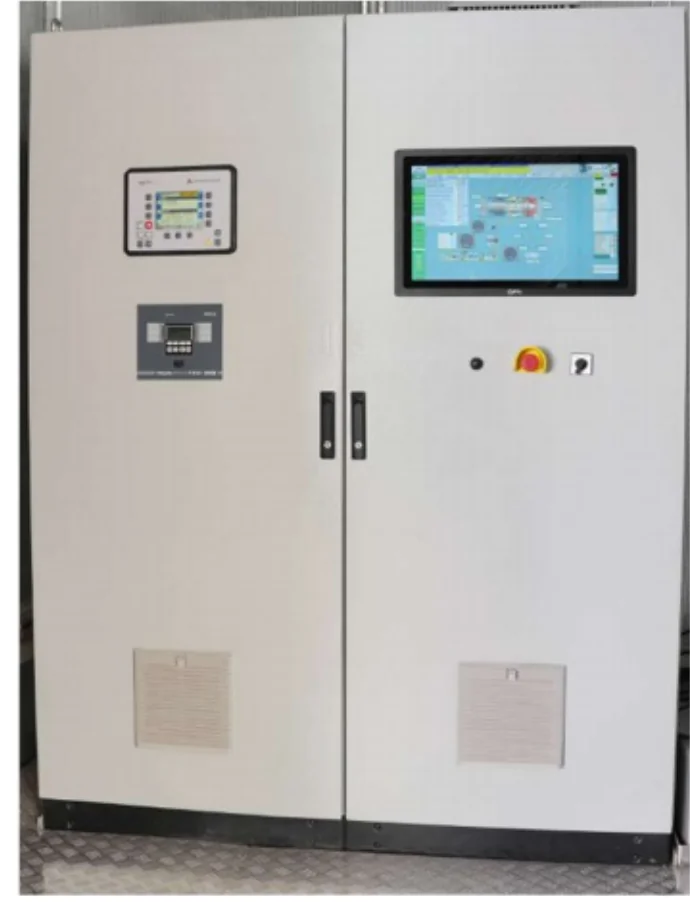

Siemens S7-400 Control Panel & HMI
Suitable applications
- Distributed generation
- Industrial and captive power
- Data centers
- Utilities and independent power producers (IPPs)
- Oil and gas facilities
- Mining operations
- Critical infrastructure
Warranty coverage and qualification steps
Warranty
Buyer Requirements
Not included in the package price
- Import duties, taxes and receiving-port fees
- Civil works
- On-site cranage
- Site feasibility studies, topographic mapping and laboratory expenses
- Storage or standby costs arising from buyer delay
- Supply of gas, water and air
- Medium-voltage cable connections
Solar Turbines Taurus 60 platform
NYTS references the original equipment manufacturer and platform to identify the equipment only. This does not imply that NYTS is an authorized dealer, distributor, agent or representative of the manufacturer.
Secure a Solar Taurus 60-7301 GSC Package
Two units are ready for delivery now, with four more available within two months. Submit a Request a Proposal to begin buyer qualification and receive pricing.
